SRR1806-150M
  • Share:

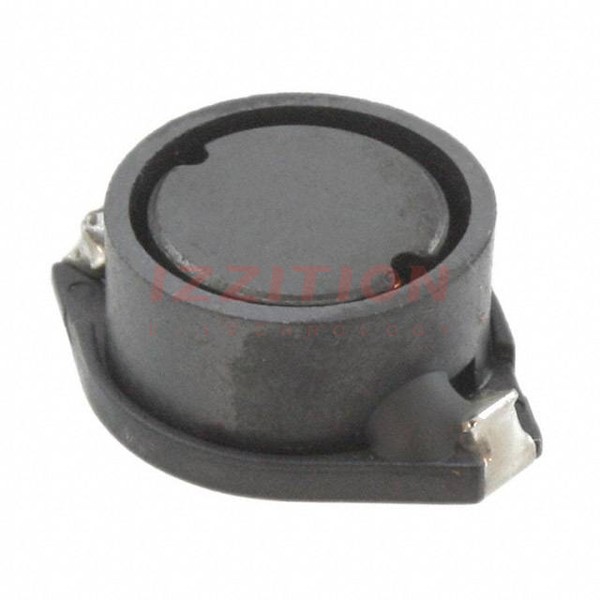

Bourns Inc. SRR1806-150M

Manufacturer No:
SRR1806-150M
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SRR1806-150M Datasheet
ECAD Model:
-
Description:
FIXED IND 15UH 3.6A 39 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:15 µH
Tolerance:±20%
Current Rating (Amps):3.6 A
Current - Saturation (Isat):7.2A
Shielding:Shielded
DC Resistance (DCR):39mOhm
Q @ Freq:53 @ 2.52MHz
Frequency - Self Resonant:17.5MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max):0.280" (7.10mm)
0 Remaining View Similar

In Stock

$1.32
227

Please send RFQ , we will respond immediately.

Similar Products

Part Number SRR1806-150M SRR1806-151M   SRR1806-100M
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite Ferrite
Inductance 15 µH 150 µH 10 µH
Tolerance ±20% ±20% ±20%
Current Rating (Amps) 3.6 A 1.05 A 4 A
Current - Saturation (Isat) 7.2A 2.3A 8.2A
Shielding Shielded Shielded Shielded
DC Resistance (DCR) 39mOhm 400mOhm 33mOhm
Q @ Freq 53 @ 2.52MHz 39 @ 796kHz 56 @ 2.52MHz
Frequency - Self Resonant 17.5MHz 4.3MHz 19MHz
Ratings - - -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz
Features - - -
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard
Supplier Device Package - - -
Size / Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm) 0.720" L x 0.551" W (18.30mm x 14.00mm) 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max) 0.280" (7.10mm) 0.280" (7.10mm) 0.280" (7.10mm)
