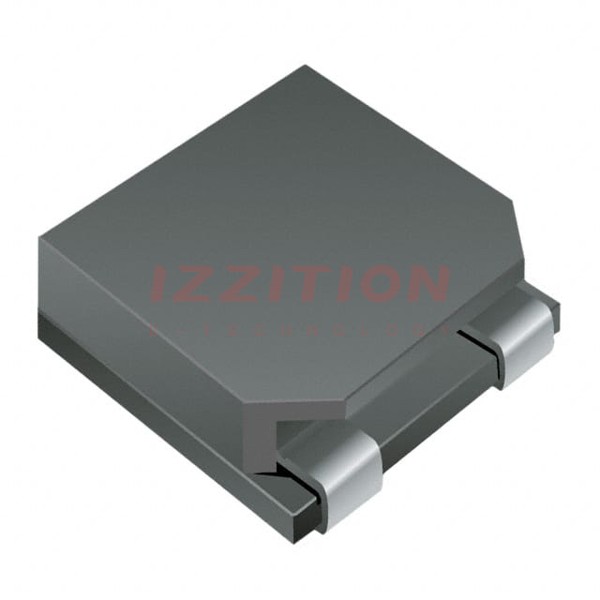

| Part Number | SRR1305-2R0ZL | SRR1305-2R7ZL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2 µH | 2.7 µH |
| Tolerance | ±25% | ±25% |
| Current Rating (Amps) | 13 A | 6 A |
| Current - Saturation (Isat) | 15A | 10A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 4.6mOhm Max | 9.5mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 60MHz | 50MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.209" (5.30mm) | 0.209" (5.30mm) |
