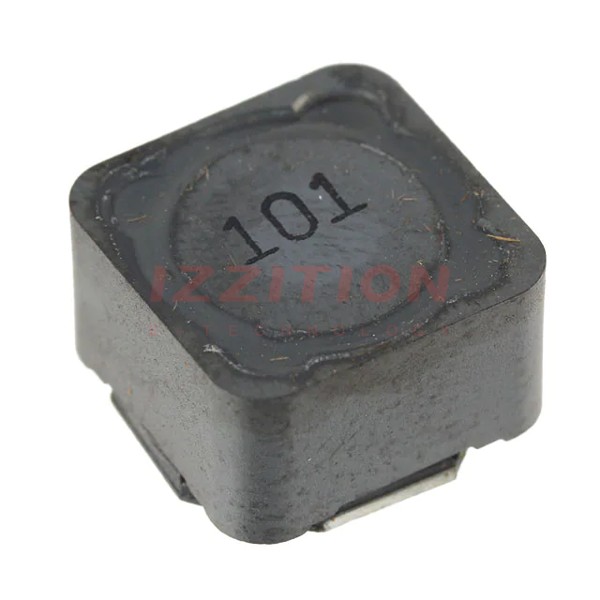

| Part Number | SRR1280-820M | SRR1280A-820M | SRR1260-820M | SRR1280-120M | SRR1280-220M |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | - | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 82 µH | 82 µH | 82 µH | 12 µH | 22 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.3 A | 2.3 A | 1.95 A | 5.6 A | 4.3 A |
| Current - Saturation (Isat) | 2.2A | 2.2A | 1.9A | 6.6A | 4.1A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 130mOhm Max | 130mOhm Max | 145mOhm Max | 28mOhm Max | 38.6mOhm Max |
| Q @ Freq | 20 @ 796kHz | 20 @ 1KHz | 25 @ 2.52MHz | 26 @ 2.52MHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 5MHz | 5MHz | 6.85MHz | 15MHz | 11MHz |
| Ratings | - | AEC-Q200 | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 1 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | 1280 | - | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.256" (6.50mm) | 0.315" (8.00mm) | 0.315" (8.00mm) |
