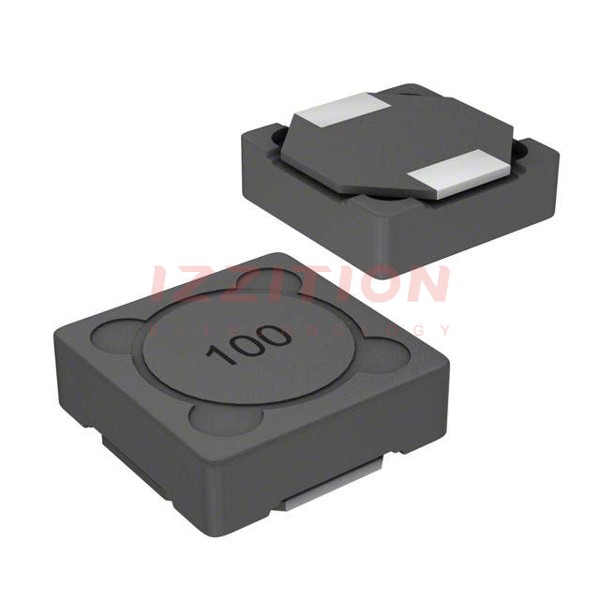

| Part Number | SRR1240-820M | SRR1260-820M | SRR1210-820M | SRR1240-120M | SRR1240-220M |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 82 µH | 82 µH | 82 µH | 12 µH | 22 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.35 A | 1.95 A | 2.8 A | 3.8 A | 3 A |
| Current - Saturation (Isat) | 1.35A | 1.9A | 2.5A | 3.6A | 2.6A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 250mOhm Max | 145mOhm Max | 112mOhm Max | 38mOhm Max | 67.5mOhm Max |
| Q @ Freq | 16 @ 2.52MHz | 25 @ 2.52MHz | 15 @ 2.52MHz | 16 @ 2.52MHz | 18 @ 2.52MHz |
| Frequency - Self Resonant | 10MHz | 6.85MHz | 3.5MHz | 25MHz | 16MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.256" (6.50mm) | 0.394" (10.00mm) | 0.177" (4.50mm) | 0.177" (4.50mm) |
