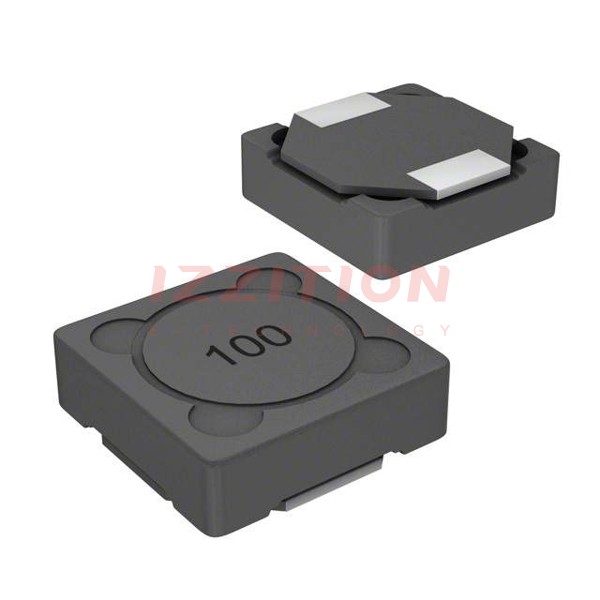

| Part Number | SRR1240-101M | SRR1260-101M | SRR1210-101M | SRR1240-100M | SRR1240-101K |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 100 µH | 100 µH | 10 µH | 100 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±10% |
| Current Rating (Amps) | 1.25 A | 1.7 A | 2.5 A | 4 A | 1.25 A |
| Current - Saturation (Isat) | 1.2A | 1.7A | 2.2A | 4A | 1.2A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 300mOhm Max | 180mOhm Max | 135mOhm Max | 32mOhm Max | 300mOhm Max |
| Q @ Freq | 14 @ 796kHz | 26 @ 796kHz | 16 @ 796kHz | 17 @ 2.52MHz | 14 @ 796kHz |
| Frequency - Self Resonant | 8MHz | 6.07MHz | 3MHz | 27MHz | 8MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.256" (6.50mm) | 0.394" (10.00mm) | 0.177" (4.50mm) | 0.177" (4.50mm) |
