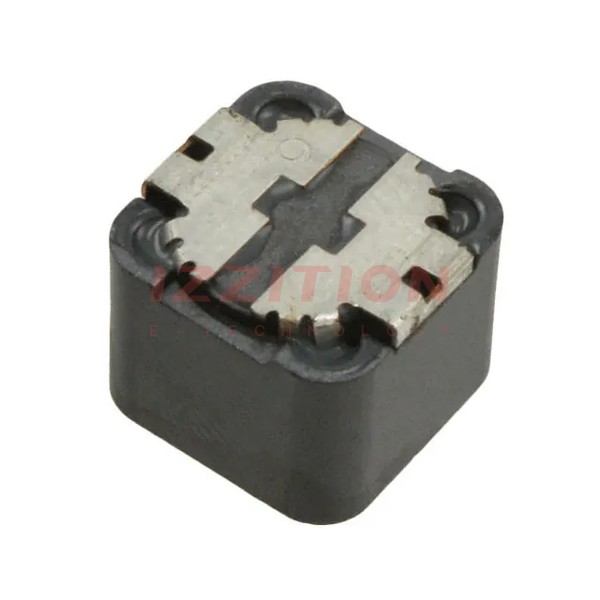

| Part Number | SRR1210-5R6Y | SRR1210A-5R6Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 5.6 µH | 5.6 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 8 A | 8 A |
| Current - Saturation (Isat) | 8.5A | 8.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 14mOhm Max | 13.5mOhm Max |
| Q @ Freq | 12 @ 7.96MHz | 12 @ 7.96MHz |
| Frequency - Self Resonant | 28MHz | 28MHz |
| Ratings | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) |
