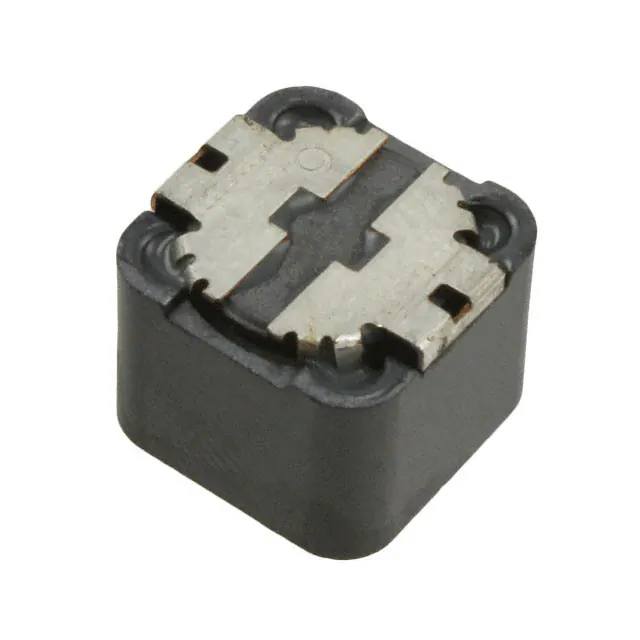

| Part Number | SRR1210-560M | SRR1210A-560M | SRR1210-561M | SRR1240-560M |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | - | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 56 µH | 56 µH | 560 µH | 56 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.4 A | 3.4 A | 1.1 A | 1.8 A |
| Current - Saturation (Isat) | 2.9A | 2.9A | 950mA | 1.65A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 90mOhm Max | 90mOhm Max | 900mOhm Max | 170mOhm Max |
| Q @ Freq | 8 @ 2.52MHz | 8 @ 2.52MHz | 12 @ 796kHz | 16 @ 2.52MHz |
| Frequency - Self Resonant | 4MHz | 4MHz | 850kHz | 12MHz |
| Ratings | - | AEC-Q200 | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 1 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.177" (4.50mm) |
