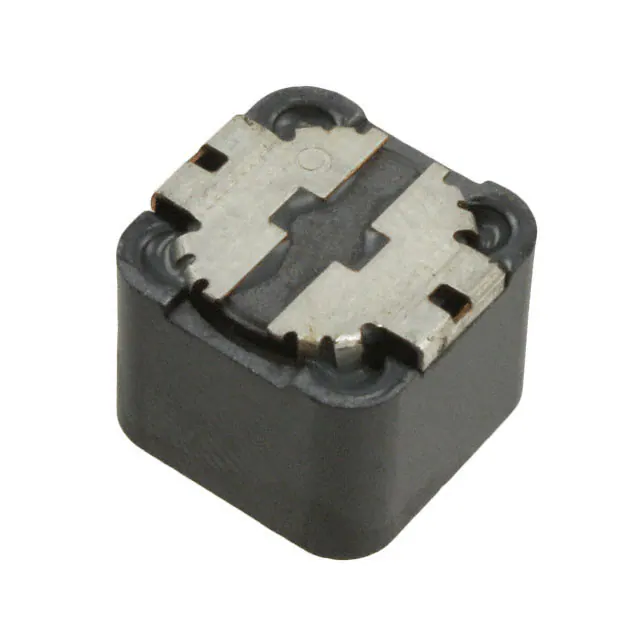

| Part Number | SRR1210-180M | SRR1210-181M | SRR1210-680M | SRR1210A-180M | SRR1240-180M | SRR1210-100M | SRR1210-120M | SRR1210-150M |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | - | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 18 µH | 180 µH | 68 µH | 18 µH | 18 µH | 10 µH | 12 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 5.5 A | 1.9 A | 3 A | 5.5 A | 3.2 A | 6.5 A | 6.3 A | 5.8 A |
| Current - Saturation (Isat) | 5.1A | 1.6A | 2.7A | 5.1A | 3A | 6.5A | 6.1A | 5.3A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 35mOhm Max | 250mOhm Max | 102mOhm Max | 35mOhm Max | 55mOhm Max | 18mOhm Max | 22mOhm Max | 32mOhm Max |
| Q @ Freq | 13 @ 2.52MHz | 14 @ 796kHz | 12 @ 2.52MHz | 13 @ 2.52MHz | 14 @ 2.52MHz | 16 @ 2.52MHz | 14 @ 2.52MHz | 16 @ 2.52MHz |
| Frequency - Self Resonant | 8MHz | 1.8MHz | 3.8MHz | 8MHz | 20MHz | 12MHz | 18MHz | 10.5MHz |
| Ratings | - | - | - | AEC-Q200 | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 1 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.177" (4.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
