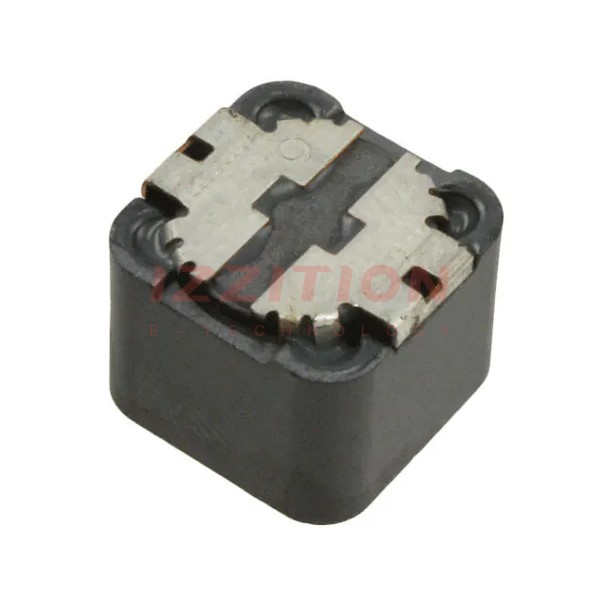

| Part Number | SRR1210-101M | SRR1210-151M | SRR1210A-101M | SRR1210-181M | SRR1240-101M | SRR1210-102M | SRR1210-121M | SRR1210-100M |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | - | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 150 µH | 100 µH | 180 µH | 100 µH | 1 mH | 120 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.5 A | 2.2 A | 2.5 A | 1.9 A | 1.25 A | 750 mA | 2.3 A | 6.5 A |
| Current - Saturation (Isat) | 2.2A | 1.8A | 2.2A | 1.6A | 1.2A | 700mA | 1.9A | 6.5A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 135mOhm Max | 190mOhm Max | 135mOhm Max | 250mOhm Max | 300mOhm Max | 1.65Ohm Max | 170mOhm Max | 18mOhm Max |
| Q @ Freq | 16 @ 796kHz | 12 @ 796kHz | 16 @ 796kHz | 14 @ 796kHz | 14 @ 796kHz | 22 @ 796kHz | 13 @ 796kHz | 16 @ 2.52MHz |
| Frequency - Self Resonant | 3MHz | 2.2MHz | 3MHz | 1.8MHz | 8MHz | 850kHz | 2.6MHz | 12MHz |
| Ratings | - | - | AEC-Q200 | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 1 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.177" (4.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
