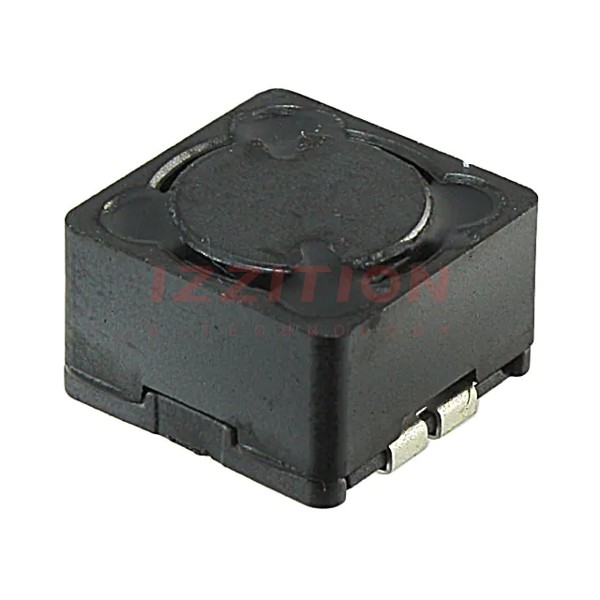

| Part Number | SRR1208-221K | SRR1208-221KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 220 µH | 220 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 1.1 A | 1.1 A |
| Current - Saturation (Isat) | 1.45A | 1.45A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 380mOhm Max | 380mOhm Max |
| Q @ Freq | 13 @ 796kHz | 13 @ 796kHz |
| Frequency - Self Resonant | 2.5MHz | 2.5MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height - Seated (Max) | 0.335" (8.50mm) | 0.335" (8.50mm) |
