Please send RFQ , we will respond immediately.

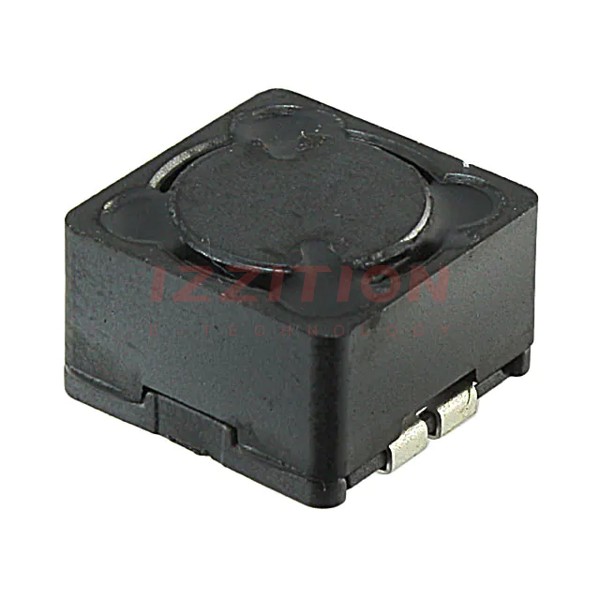

| Part Number | SRR1208-220ML | SRR1208-270ML | SRR1205-220ML | SRR1206-220ML | SRR1208-120ML | SRR1208-220M |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 27 µH | 22 µH | 22 µH | 12 µH | 22 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.5 A | 3 A | 2.4 A | 2.3 A | 4.8 A | 3.5 A |
| Current - Saturation (Isat) | 4A | 4.3A | 4.6A | 3.8A | 6.5A | 4A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 43mOhm Max | 48mOhm Max | 95mOhm Max | 62mOhm Max | 25mOhm Max | 43mOhm Max |
| Q @ Freq | 23 @ 2.52MHz | 23 @ 2.52MHz | 19 @ 2.52MHz | 21 @ 2.52MHz | 19 @ 2.52MHz | 23 @ 2.52MHz |
| Frequency - Self Resonant | 7MHz | 6.5MHz | 9MHz | 11MHz | 11MHz | 7MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height - Seated (Max) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.217" (5.50mm) | 0.256" (6.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) |
