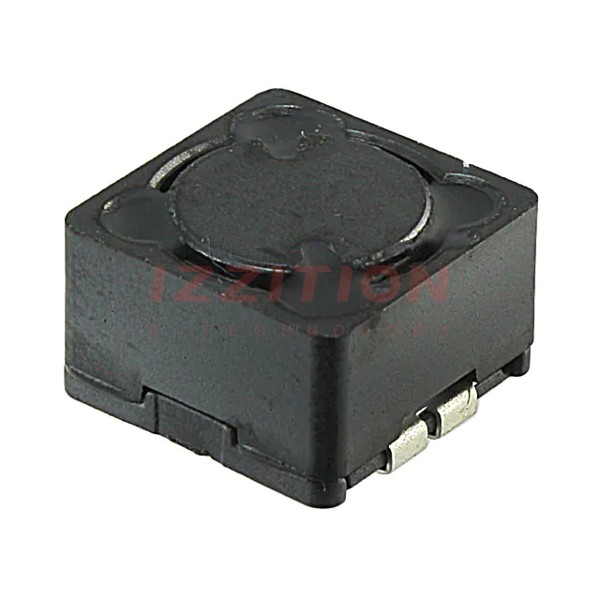

| Part Number | SRR1208-122KL | SRR1208-182KL | SRR1208-222KL | SRR1208-152KL | SRR1208-822KL | SRR1206-122KL | SRR1208-102KL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.2 mH | 1.8 mH | 2.2 mH | 1.5 mH | 8.2 mH | 1.2 mH | 1 mH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 400 mA | 460 mA | 400 mA | 360 mA | 200 mA | 250 mA | 500 mA |
| Current - Saturation (Isat) | 570mA | 480mA | 420mA | 550mA | 220mA | 510mA | 670mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 2Ohm Max | 3.4Ohm Max | 4.2Ohm Max | 2.35Ohm Max | 17Ohm Max | 2.65Ohm Max | 1.65Ohm Max |
| Q @ Freq | 10 @ 252kHz | 20 @ 252kHz | 20 @ 252kHz | 10 @ 252kHz | 16 @ 252kHz | 10 @ 252kHz | 11 @ 252kHz |
| Frequency - Self Resonant | 800kHz | 700kHz | 650kHz | 750kHz | 350kHz | 1.5MHz | 1MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height - Seated (Max) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.256" (6.50mm) | 0.335" (8.50mm) |
