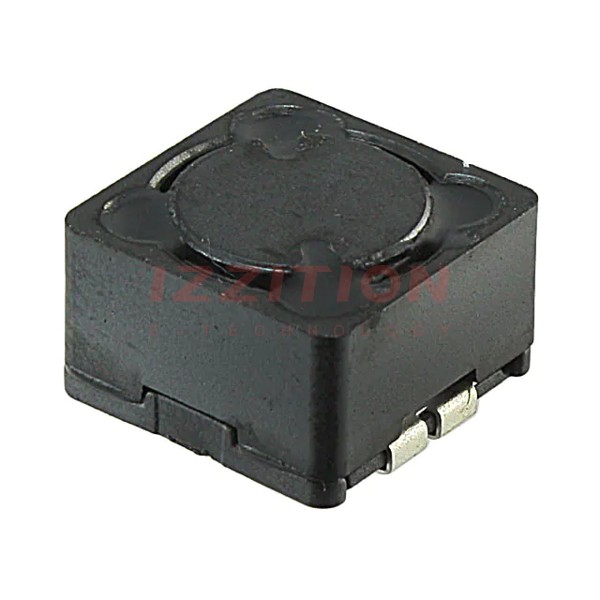

| Part Number | SRR1208-102KL | SRR1208-182KL | SRR1208-152KL | SRR1208-103KL | SRR1208-122KL | SRR1206-102KL | SRR1208-101KL | SRR1208-102K |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 mH | 1.8 mH | 1.5 mH | 10 mH | 1.2 mH | 1 mH | 100 µH | 1 mH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 500 mA | 460 mA | 360 mA | 180 mA | 400 mA | 300 mA | 1.5 A | 500 mA |
| Current - Saturation (Isat) | 670mA | 480mA | 550mA | 200mA | 570mA | 540mA | 2.1A | 670mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.65Ohm Max | 3.4Ohm Max | 2.35Ohm Max | 19.2Ohm Max | 2Ohm Max | 2.3Ohm Max | 170mOhm Max | 1.65Ohm Max |
| Q @ Freq | 11 @ 252kHz | 20 @ 252kHz | 10 @ 252kHz | 24 @ 79.6kHz | 10 @ 252kHz | 10 @ 252kHz | 15 @ 796kHz | 11 @ 252kHz |
| Frequency - Self Resonant | 1MHz | 700kHz | 750kHz | 300kHz | 800kHz | 1.8MHz | 4MHz | 1MHz |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height - Seated (Max) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.256" (6.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) |
