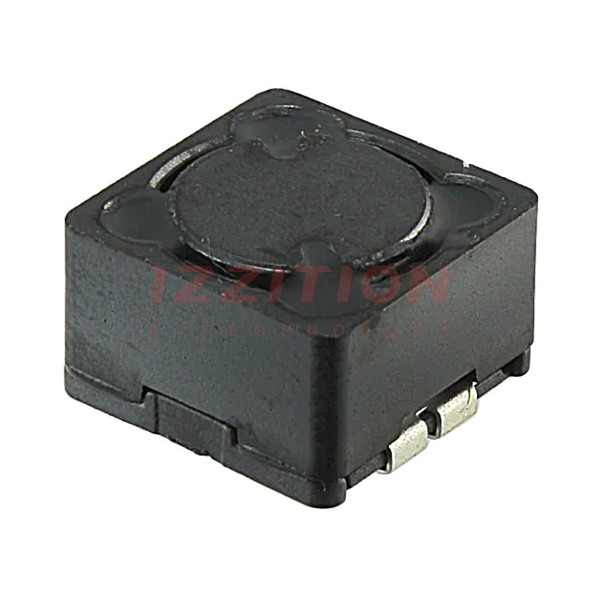

| Part Number | SRR1208-100ML | SRR1208-150ML | SRR1208-180ML | SRR1208-120ML | SRR1205-100ML | SRR1206-100ML | SRR1208-100M |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 15 µH | 18 µH | 12 µH | 10 µH | 10 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 5 A | 4 A | 3.8 A | 4.8 A | 3 A | 3.3 A | 5 A |
| Current - Saturation (Isat) | 6.7A | 5.6A | 4A | 6.5A | 6A | 5.7A | 6.7A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 21mOhm Max | 36mOhm Max | 40mOhm Max | 25mOhm Max | 54mOhm Max | 35mOhm Max | 21mOhm Max |
| Q @ Freq | 20 @ 2.52MHz | 21 @ 2.52MHz | 21 @ 2.52MHz | 19 @ 2.52MHz | 21 @ 2.52MHz | 18 @ 2.52MHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 15MHz | 11MHz | 9MHz | 11MHz | 15MHz | 18MHz | 15MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height - Seated (Max) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.217" (5.50mm) | 0.256" (6.50mm) | 0.335" (8.50mm) |
