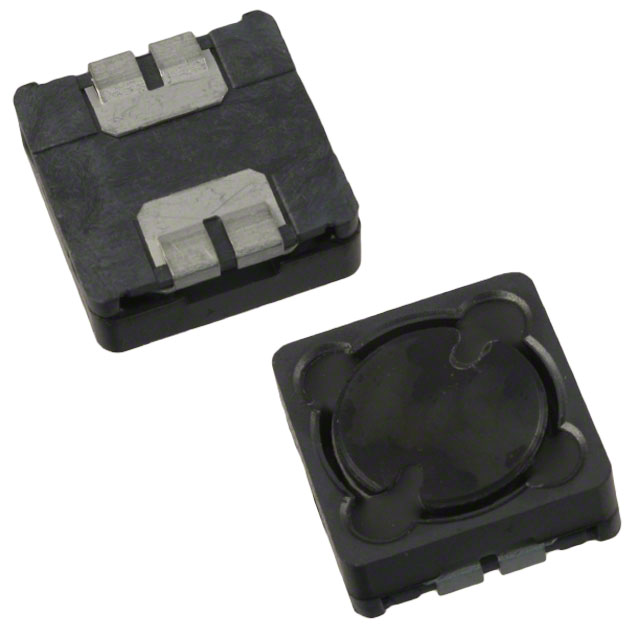

| Part Number | SRR1205-181KL | SRR1205-681KL | SRR1206-181KL | SRR1205-101KL | SRR1205-121KL | SRR1205-151KL |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 180 µH | 680 µH | 180 µH | 100 µH | 120 µH | 150 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 700 mA | 350 mA | 800 mA | 1 A | 900 mA | 800 mA |
| Current - Saturation (Isat) | 1.4A | 600mA | 1.3A | 2A | 1.6A | 1.5A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 750mOhm Max | 2.4Ohm Max | 380mOhm Max | 400mOhm Max | 500mOhm Max | 580mOhm Max |
| Q @ Freq | 9 @ 796kHz | 6 @ 796kHz | 12 @ 796kHz | 12 @ 796kHz | 10 @ 796kHz | 10 @ 796kHz |
| Frequency - Self Resonant | 3.5MHz | 1.5MHz | 4.5MHz | 5MHz | 4.5MHz | 4MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.256" (6.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) |
