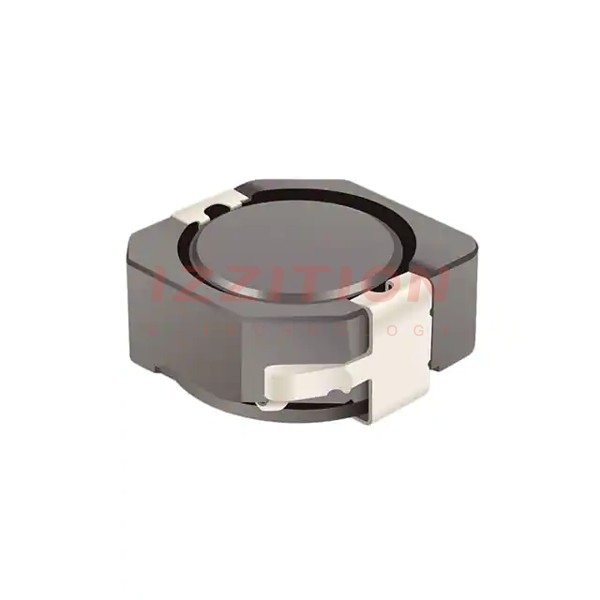

| Part Number | SRR1050A-470Y | SRR1050A-270Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 47 µH | 27 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 2 A | 2.6 A |
| Current - Saturation (Isat) | 2A | 2.7A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 127mOhm Max | 77mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 5.9MHz | 10MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.402" L x 0.394" W (10.20mm x 10.00mm) |
| Height - Seated (Max) | 0.201" (5.10mm) | 0.201" (5.10mm) |
