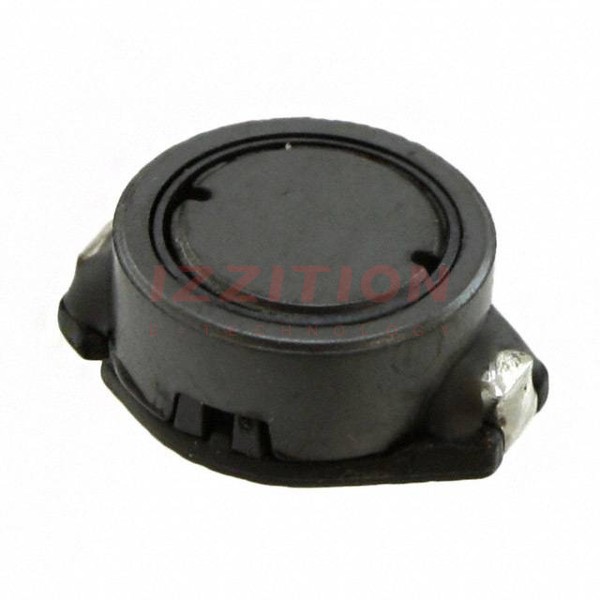

| Part Number | SRR1005-391K | SRR1005-331K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 390 µH | 330 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 330 mA | 350 mA |
| Current - Saturation (Isat) | 450mA | 480mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.4Ohm Max | 1.2Ohm Max |
| Q @ Freq | 25 @ 796kHz | 30 @ 796kHz |
| Frequency - Self Resonant | 4.2MHz | 4.5MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) | 0.205" (5.20mm) |
