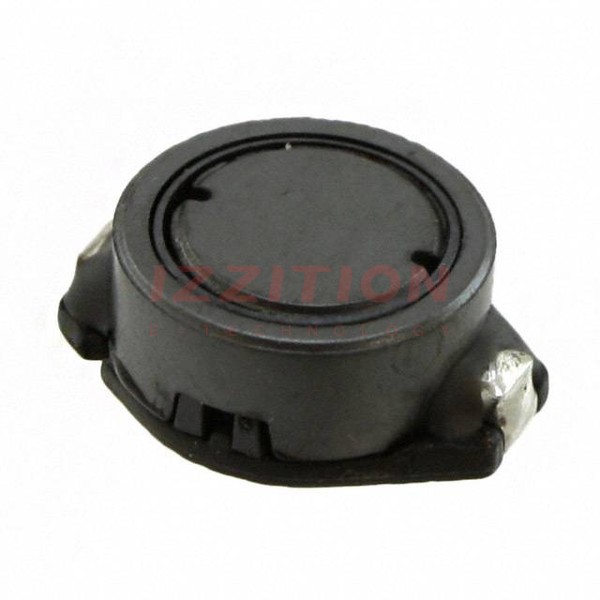

| Part Number | SRR1005-220Y | SRR1005-270Y | SRR1005-820Y | SRR1005-220M |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 27 µH | 82 µH | 22 µH |
| Tolerance | ±15% | ±15% | ±15% | ±20% |
| Current Rating (Amps) | 1.4 A | 1.3 A | 750 mA | 1.4 A |
| Current - Saturation (Isat) | 1.9A | 1.6A | 950mA | 1.9A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 100mOhm Max | 120mOhm Max | 380mOhm Max | 100mOhm Max |
| Q @ Freq | 42 @ 2.52MHz | 40 @ 2.52MHz | 35 @ 2.52MHz | 42 @ 2.52MHz |
| Frequency - Self Resonant | 18MHz | 17MHz | 8MHz | 18MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) |
