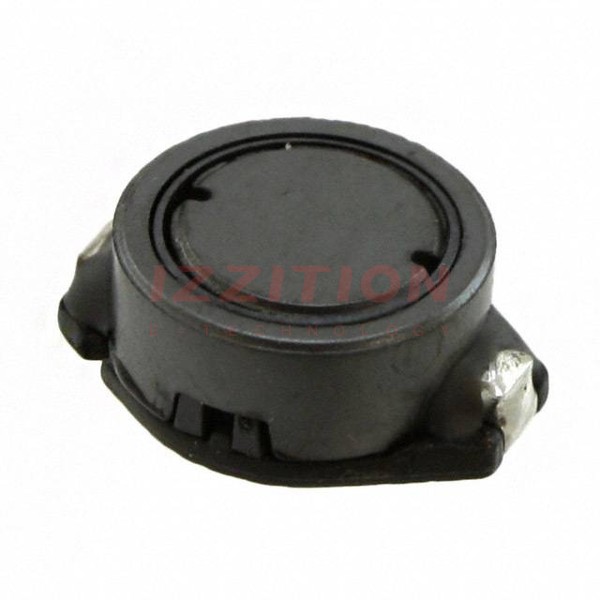

| Part Number | SRR1005-1R0M | SRR1005-1R5M | SRR1005-3R0M | SRR1005-7R0M | SRR1005-100M | SRR1005-120M | SRR1005-150M |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.5 µH | 3 µH | 7 µH | 10 µH | 12 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 4.5 A | 3.6 A | 2.9 A | 2.2 A | 2 A | 1.8 A | 1.7 A |
| Current - Saturation (Isat) | 8A | 7A | 5A | 3.2A | 3A | 2.3A | 2.1A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 17mOhm Max | 20mOhm Max | 30mOhm Max | 55mOhm Max | 65mOhm Max | 80mOhm Max | 85mOhm Max |
| Q @ Freq | 25 @ 7.96MHz | 25 @ 7.96MHz | 25 @ 7.96MHz | 22 @ 7.96MHz | 48 @ 2.52MHz | 45 @ 2.52MHz | 40 @ 2.52MHz |
| Frequency - Self Resonant | 120MHz | 100MHz | 80MHz | 32MHz | 30MHz | 25MHz | 20MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) |
