Please send RFQ , we will respond immediately.

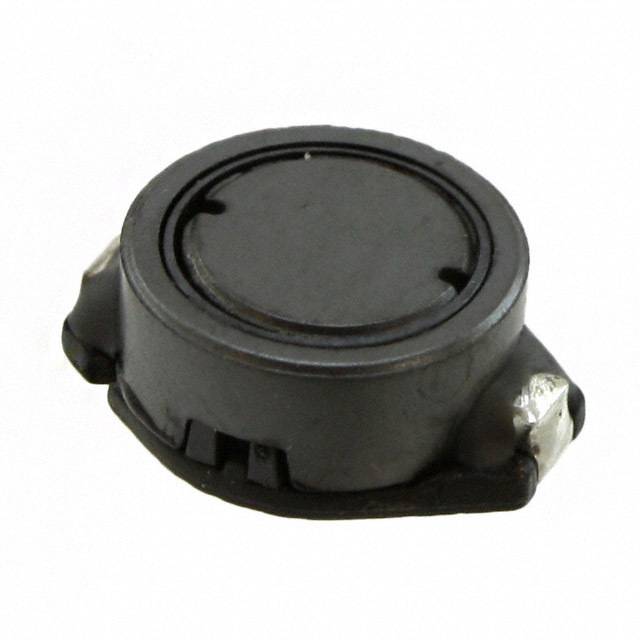

| Part Number | SRR1005-122K | SRR1005-222K | SRR1005-152K | SRR1005-182K | SRR1005-102K | SRR1005-121K |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.2 mH | 2.2 mH | 1.5 mH | 1.8 mH | 1 mH | 120 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 200 mA | 140 mA | 170 mA | 160 mA | 220 mA | 600 mA |
| Current - Saturation (Isat) | 290mA | 210mA | 240mA | 230mA | 320mA | 800mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 3.6Ohm Max | 6.5Ohm Max | 5.2Ohm Max | 5.7Ohm Max | 3.2Ohm Max | 460mOhm Max |
| Q @ Freq | 58 @ 252kHz | 55 @ 252kHz | 53 @ 252kHz | 65 @ 252kHz | 65 @ 252kHz | 30 @ 796kHz |
| Frequency - Self Resonant | 2MHz | 1.4MHz | 1.6MHz | 1.4MHz | 2MHz | 7.2MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) |
