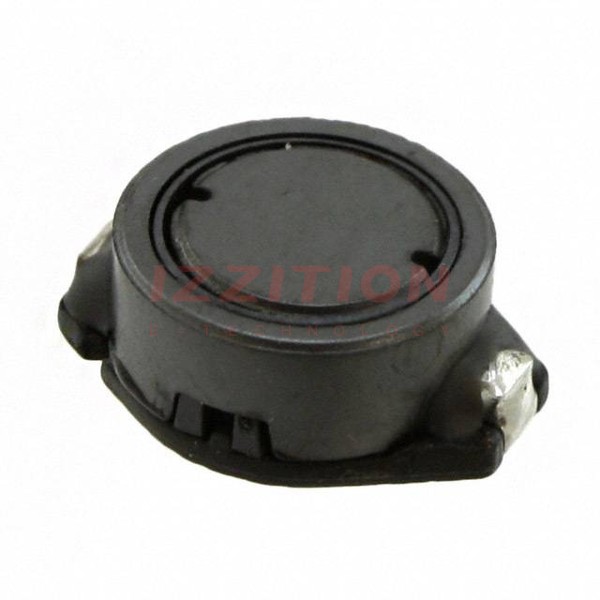

| Part Number | SRR1005-101K | SRR1005-102K | SRR1005-151K | SRR1005-121K | SRR1005-181K | SRR1003-101K |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 1 mH | 150 µH | 120 µH | 180 µH | 100 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 680 mA | 220 mA | 550 mA | 600 mA | 500 mA | 400 mA |
| Current - Saturation (Isat) | 900mA | 320mA | 660mA | 800mA | 650mA | 950mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 420mOhm Max | 3.2Ohm Max | 520mOhm Max | 460mOhm Max | 700mOhm Max | 1.4Ohm Max |
| Q @ Freq | 35 @ 796kHz | 65 @ 252kHz | 28 @ 796kHz | 30 @ 796kHz | 28 @ 796kHz | 23 @ 796kHz |
| Frequency - Self Resonant | 7.5MHz | 2MHz | 6.2MHz | 7.2MHz | 5.8MHz | 10MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.406" W (12.70mm x 10.30mm) |
| Height - Seated (Max) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.118" (3.00mm) |
