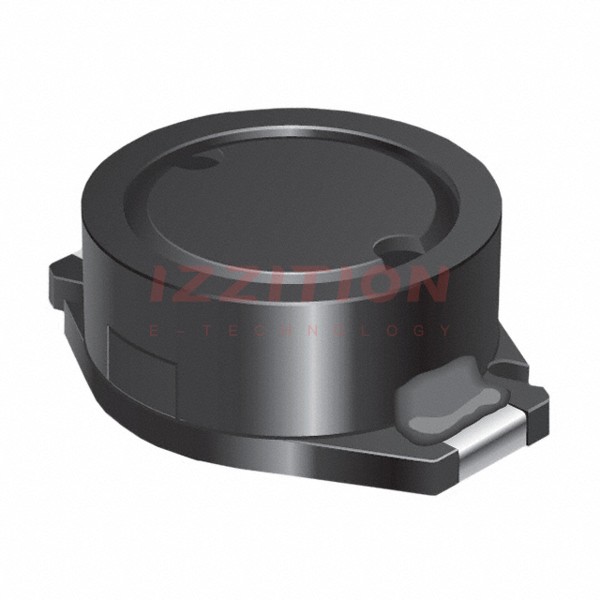

| Part Number | SRR1003-331Y | SRR1003-391Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 330 µH | 390 µH |
| Tolerance | ±15% | ±15% |
| Current Rating (Amps) | 200 mA | 180 mA |
| Current - Saturation (Isat) | 550mA | 460mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 3.6Ohm Max | 4.6Ohm Max |
| Q @ Freq | 26 @ 796kHz | 28 @ 796kHz |
| Frequency - Self Resonant | 3.6MHz | 2.6MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.500" L x 0.406" W (12.70mm x 10.30mm) | 0.500" L x 0.406" W (12.70mm x 10.30mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
