Please send RFQ , we will respond immediately.

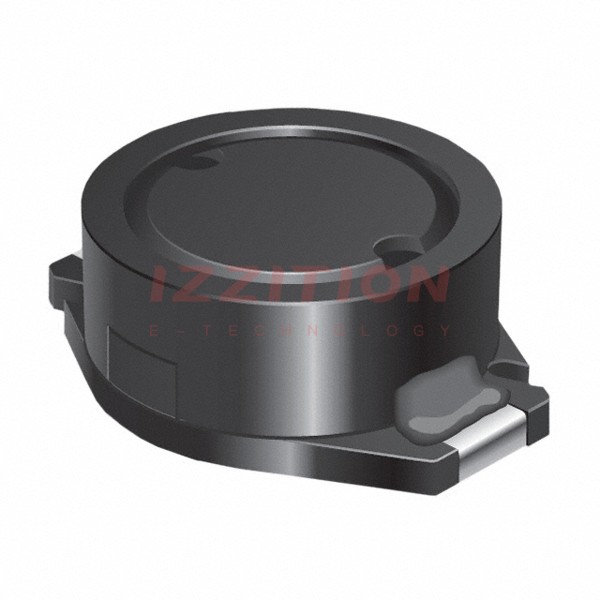

| Part Number | SRR1003-101M | SRR1003-151M | SRR1003-121M | SRR1003-181M | SRR1003-100M | SRR1003-101K |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 150 µH | 120 µH | 180 µH | 10 µH | 100 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±10% |
| Current Rating (Amps) | 400 mA | 320 mA | 350 mA | 280 mA | 1.24 A | 400 mA |
| Current - Saturation (Isat) | 950mA | 800mA | 850mA | 750mA | 3.3A | 950mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.4Ohm Max | 1.8Ohm Max | 1.52Ohm Max | 2.2Ohm Max | 145mOhm Max | 1.4Ohm Max |
| Q @ Freq | 23 @ 796kHz | 23 @ 796kHz | 22 @ 796kHz | 20 @ 796kHz | 18 @ 2.52MHz | 23 @ 796kHz |
| Frequency - Self Resonant | 10MHz | 8MHz | 9MHz | 7MHz | 28MHz | 10MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.500" L x 0.406" W (12.70mm x 10.30mm) | 0.500" L x 0.406" W (12.70mm x 10.30mm) | 0.500" L x 0.406" W (12.70mm x 10.30mm) | 0.500" L x 0.406" W (12.70mm x 10.30mm) | 0.500" L x 0.406" W (12.70mm x 10.30mm) | 0.500" L x 0.406" W (12.70mm x 10.30mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
