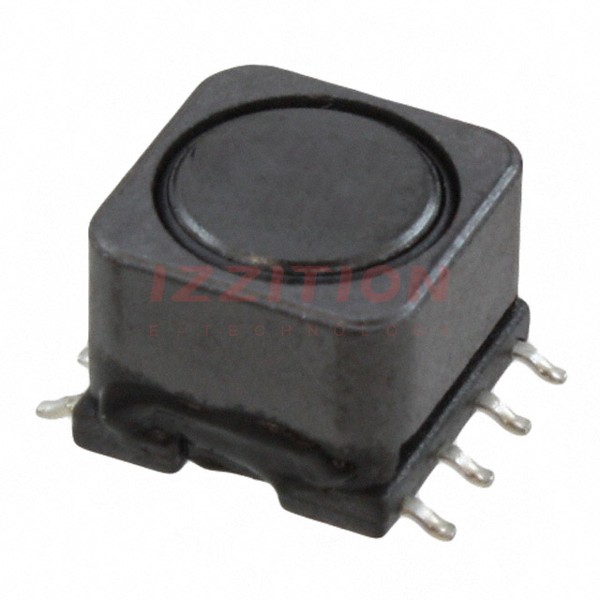

| Part Number | SRR0908-7R5ML | SRR0908-1R5ML |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 7.5 µH | 1.5 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3.4 A | 5.6 A |
| Current - Saturation (Isat) | 4.6A | 10A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 32mOhm Max | 14mOhm Max |
| Q @ Freq | 18 @ 7.96MHz | 20 @ 7.96MHz |
| Frequency - Self Resonant | 15MHz | 65MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, Gull Wing | 8-SMD, Gull Wing |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Height - Seated (Max) | 0.307" (7.80mm) | 0.307" (7.80mm) |
