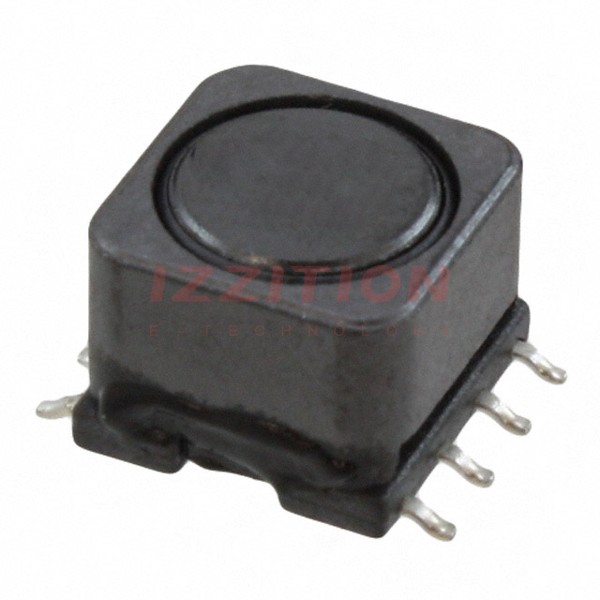

| Part Number | SRR0908-390ML | SRR0906-390ML | SRR0908-330ML |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 39 µH | 39 µH | 33 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.5 A | 1.1 A | 1.7 A |
| Current - Saturation (Isat) | 2.4A | 1.4A | 2.7A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 135mOhm Max | 160mOhm Max | 100mOhm Max |
| Q @ Freq | 45 @ 2.52MHz | 35 @ 2.52MHz | 40 @ 2.52MHz |
| Frequency - Self Resonant | 5MHz | 14MHz | 5MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Height - Seated (Max) | 0.307" (7.80mm) | 0.248" (6.30mm) | 0.307" (7.80mm) |
