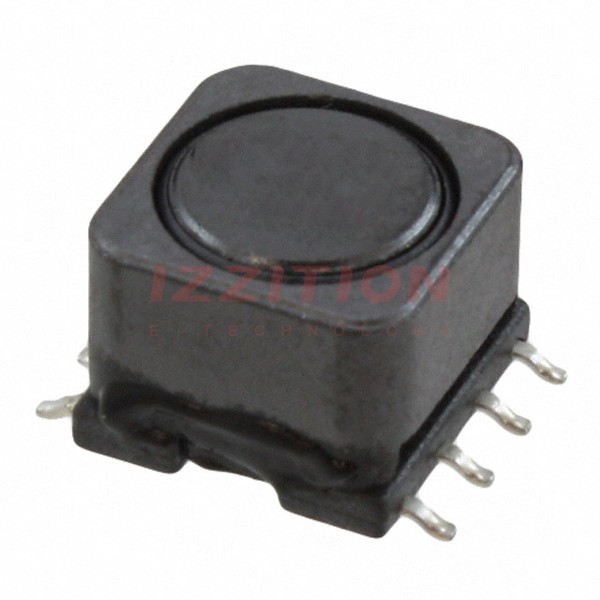

| Part Number | SRR0908-120ML | SRR0908-150ML | SRR0908-180ML | SRR0908-220ML | SRR0908-820ML | SRR0906-120ML | SRR0908-100ML |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 15 µH | 18 µH | 22 µH | 82 µH | 12 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.5 A | 2.2 A | 2 A | 1.9 A | 1.05 A | 1.7 A | 3 A |
| Current - Saturation (Isat) | 4A | 3.9A | 3.8A | 3.3A | 1.9A | 2.6A | 4.1A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 50mOhm Max | 65mOhm Max | 75mOhm Max | 80mOhm Max | 260mOhm Max | 85mOhm Max | 40mOhm Max |
| Q @ Freq | 40 @ 2.52MHz | 45 @ 2.52MHz | 40 @ 2.52MHz | 35 @ 2.52MHz | 30 @ 2.52MHz | 35 @ 2.52MHz | 33 @ 2.52MHz |
| Frequency - Self Resonant | 11MHz | 8.5MHz | 8.5MHz | 6MHz | 2.4MHz | 26MHz | 11MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Height - Seated (Max) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.248" (6.30mm) | 0.307" (7.80mm) |
