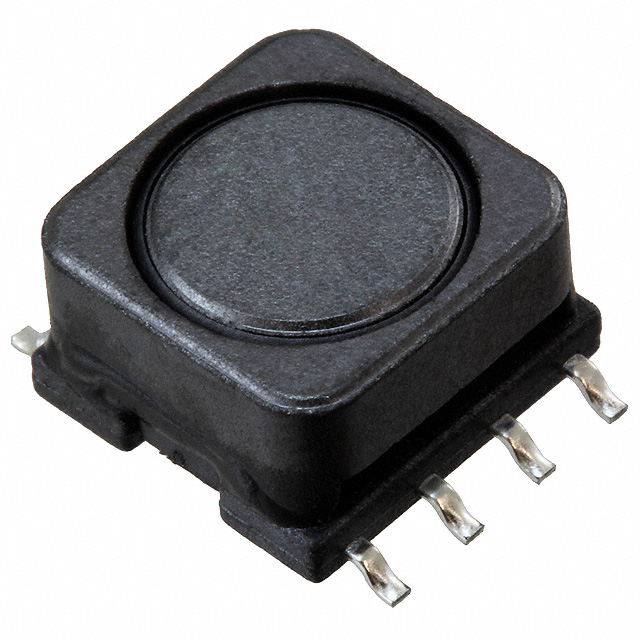

| Part Number | SRR0906-822YL | SRR0908-822YL | SRR0906-122YL | SRR0906-222YL | SRR0906-821YL | SRR0906-822KL |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 8.2 mH | 8.2 mH | 1.2 mH | 2.2 mH | 820 µH | 8.2 mH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±10% |
| Current Rating (Amps) | 80 mA | 100 mA | 200 mA | 160 mA | 230 mA | 80 mA |
| Current - Saturation (Isat) | 90mA | 140mA | 240mA | 180mA | 300mA | 90mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 31Ohm Max | 24Ohm Max | 4.4Ohm Max | 8.5Ohm Max | 3.5Ohm Max | 31Ohm Max |
| Q @ Freq | 100 @ 252kHz | 85 @ 252kHz | 100 @ 252kHz | 100 @ 252kHz | 85 @ 796kHz | 100 @ 252kHz |
| Frequency - Self Resonant | 800kHz | 500kHz | 2.3MHz | 1.5MHz | 2.6MHz | 800kHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Height - Seated (Max) | 0.248" (6.30mm) | 0.307" (7.80mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) |
