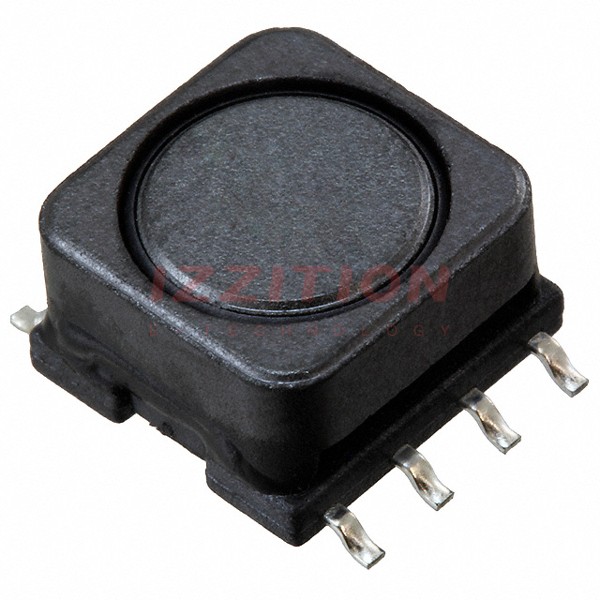

| Part Number | SRR0906-181YL | SRR0906-182YL | SRR0906-681YL | SRR0908-181YL | SRR0906-101YL | SRR0906-121YL | SRR0906-151YL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 180 µH | 1.8 mH | 680 µH | 180 µH | 100 µH | 120 µH | 150 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 520 mA | 170 mA | 250 mA | 700 mA | 700 mA | 650 mA | 600 mA |
| Current - Saturation (Isat) | 700mA | 200mA | 330mA | 1A | 900mA | 750mA | 700mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 820mOhm Max | 7Ohm Max | 3.2Ohm Max | 500mOhm Max | 420mOhm Max | 480mOhm Max | 550mOhm Max |
| Q @ Freq | 40 @ 796kHz | 100 @ 252kHz | 60 @ 796kHz | 35 @ 796kHz | 40 @ 796kHz | 40 @ 796kHz | 40 @ 796kHz |
| Frequency - Self Resonant | 5.5MHz | 1.7MHz | 2.7MHz | 4.2MHz | 7.5MHz | 7MHz | 6MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Height - Seated (Max) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.307" (7.80mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) |
