Please send RFQ , we will respond immediately.

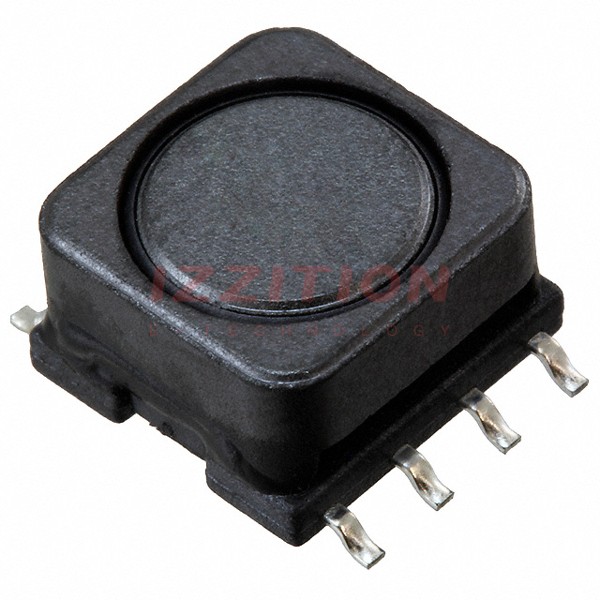

| Part Number | SRR0906-122YL | SRR0906-822YL | SRR0906-152YL | SRR0906-182YL | SRR0906-222YL | SRR0906-102YL | SRR0906-121YL | SRR0906-122KL |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.2 mH | 8.2 mH | 1.5 mH | 1.8 mH | 2.2 mH | 1 mH | 120 µH | 1.2 mH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±10% |
| Current Rating (Amps) | 200 mA | 80 mA | 180 mA | 170 mA | 160 mA | 220 mA | 650 mA | 200 mA |
| Current - Saturation (Isat) | 240mA | 90mA | 220mA | 200mA | 180mA | 260mA | 750mA | 240mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 4.4Ohm Max | 31Ohm Max | 5.2Ohm Max | 7Ohm Max | 8.5Ohm Max | 4Ohm Max | 480mOhm Max | 4.4Ohm Max |
| Q @ Freq | 100 @ 252kHz | 100 @ 252kHz | 100 @ 252kHz | 100 @ 252kHz | 100 @ 252kHz | 100 @ 252kHz | 40 @ 796kHz | 100 @ 252kHz |
| Frequency - Self Resonant | 2.3MHz | 800kHz | 2MHz | 1.7MHz | 1.5MHz | 2.3MHz | 7MHz | 2.3MHz |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Height - Seated (Max) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) |
