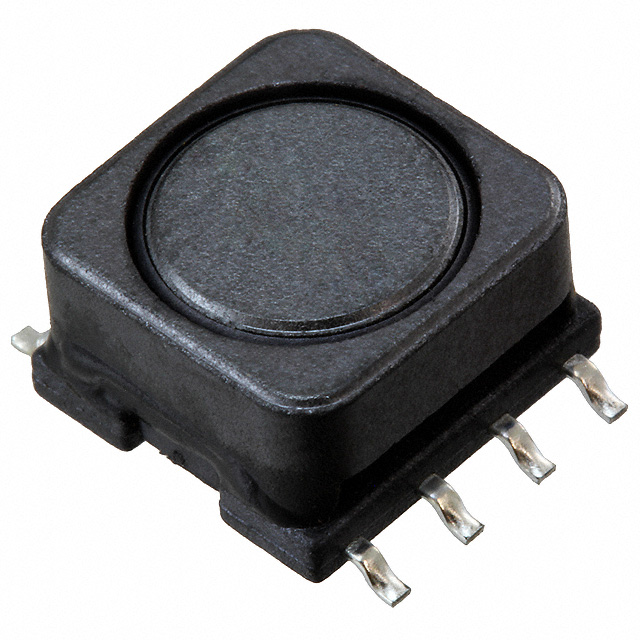

| Part Number | SRR0906-121YL | SRR0906-151YL | SRR0906-122YL | SRR0906-181YL | SRR0906-221YL | SRR0906-821YL | SRR0908-121YL | SRR0906-101YL |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 120 µH | 150 µH | 1.2 mH | 180 µH | 220 µH | 820 µH | 120 µH | 100 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 650 mA | 600 mA | 200 mA | 520 mA | 480 mA | 230 mA | 900 mA | 700 mA |
| Current - Saturation (Isat) | 750mA | 700mA | 240mA | 700mA | 600mA | 300mA | 1.1A | 900mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 480mOhm Max | 550mOhm Max | 4.4Ohm Max | 820mOhm Max | 1Ohm Max | 3.5Ohm Max | 340mOhm Max | 420mOhm Max |
| Q @ Freq | 40 @ 796kHz | 40 @ 796kHz | 100 @ 252kHz | 40 @ 796kHz | 40 @ 796kHz | 85 @ 796kHz | 42 @ 796kHz | 40 @ 796kHz |
| Frequency - Self Resonant | 7MHz | 6MHz | 2.3MHz | 5.5MHz | 5MHz | 2.6MHz | 5.7MHz | 7.5MHz |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Height - Seated (Max) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.307" (7.80mm) | 0.248" (6.30mm) |
