Please send RFQ , we will respond immediately.

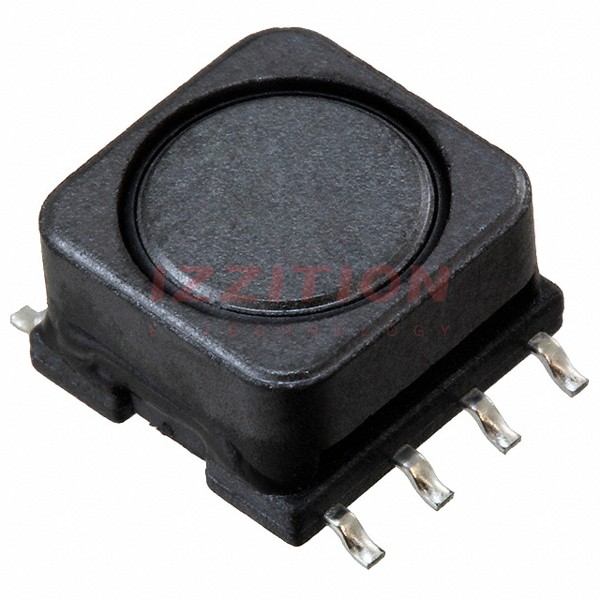

| Part Number | SRR0906-102YL | SRR0906-103YL | SRR0906-122YL | SRR0906-152YL | SRR0906-182YL | SRR0908-102YL | SRR0906-101YL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 mH | 10 mH | 1.2 mH | 1.5 mH | 1.8 mH | 1 mH | 100 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 220 mA | 70 mA | 200 mA | 180 mA | 170 mA | 300 mA | 700 mA |
| Current - Saturation (Isat) | 260mA | 80mA | 240mA | 220mA | 200mA | 410mA | 900mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 4Ohm Max | 38Ohm Max | 4.4Ohm Max | 5.2Ohm Max | 7Ohm Max | 2.2Ohm Max | 420mOhm Max |
| Q @ Freq | 100 @ 252kHz | 100 @ 79.6kHz | 100 @ 252kHz | 100 @ 252kHz | 100 @ 252kHz | 85 @ 252kHz | 40 @ 796kHz |
| Frequency - Self Resonant | 2.3MHz | 700kHz | 2.3MHz | 2MHz | 1.7MHz | 1.8MHz | 7.5MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Height - Seated (Max) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.307" (7.80mm) | 0.248" (6.30mm) |
