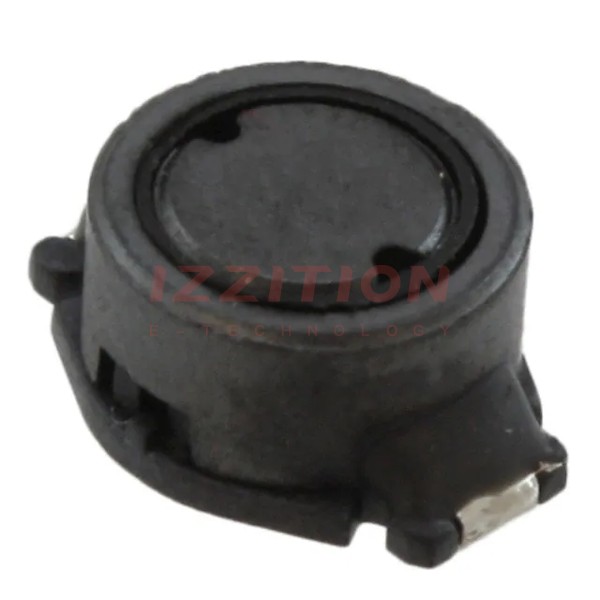

| Part Number | SRR0805-560K | SRR0805-561K | SRR0804-560K |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 56 µH | 560 µH | 56 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 680 mA | 180 mA | 500 mA |
| Current - Saturation (Isat) | 950mA | 340mA | 850mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 380mOhm Max | 3Ohm Max | 600mOhm Max |
| Q @ Freq | 30 @ 2.52MHz | 32 @ 796kHz | 24 @ 2.52MHz |
| Frequency - Self Resonant | 9.5MHz | 3MHz | 12MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Height - Seated (Max) | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.150" (3.80mm) |
