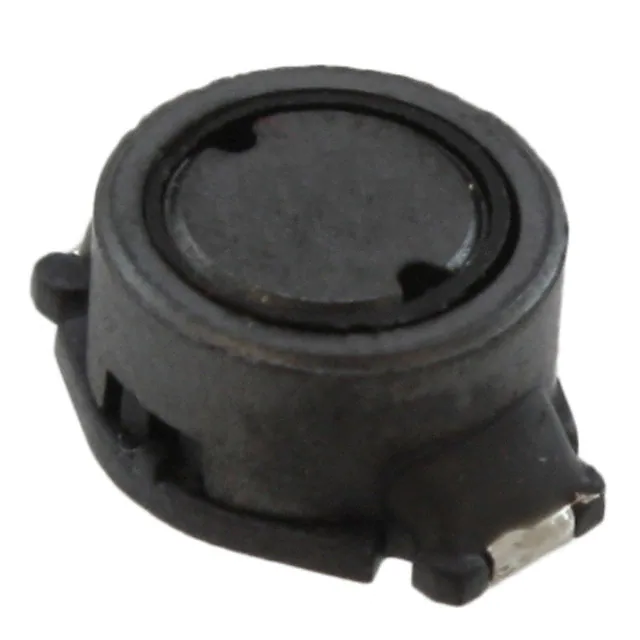

| Part Number | SRR0805-181K | SRR0805-681K | SRR0905-181K | SRR0804-181K | SRR0805-101K | SRR0805-121K | SRR0805-151K |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 180 µH | 680 µH | 180 µH | 180 µH | 100 µH | 120 µH | 150 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 350 mA | 170 mA | 500 mA | 280 mA | 500 mA | 450 mA | 400 mA |
| Current - Saturation (Isat) | 620mA | 320mA | - | 450mA | 700mA | 660mA | 640mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.05Ohm Max | 3.4Ohm Max | 570mOhm Max | 1.45Ohm Max | 600mOhm Max | 750mOhm Max | 900mOhm Max |
| Q @ Freq | 41 @ 796kHz | 32 @ 796kHz | 24 @ 796kHz | 53 @ 796kHz | 45 @ 796kHz | 42 @ 796kHz | 39 @ 796kHz |
| Frequency - Self Resonant | 4.8MHz | 2.8MHz | 5MHz | 6MHz | 7.5MHz | 7MHz | 6.5MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 100 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.390" Dia (9.90mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Height - Seated (Max) | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.189" (4.80mm) | 0.150" (3.80mm) | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.185" (4.70mm) |
