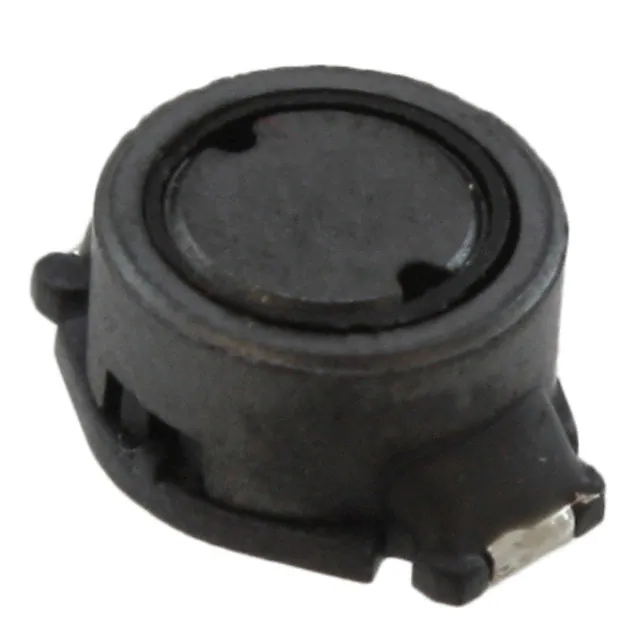

| Part Number | SRR0805-101K | SRR0805-121K | SRR0805-102K | SRR0805-151K | SRR0805-181K | SRR0905-101K | SRR0804-101K |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 120 µH | 1 mH | 150 µH | 180 µH | 100 µH | 100 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 500 mA | 450 mA | 150 mA | 400 mA | 350 mA | 720 mA | 370 mA |
| Current - Saturation (Isat) | 700mA | 660mA | 240mA | 640mA | 620mA | - | 650mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 600mOhm Max | 750mOhm Max | 5Ohm Max | 900mOhm Max | 1.05Ohm Max | 340mOhm Max | 950mOhm Max |
| Q @ Freq | 45 @ 796kHz | 42 @ 796kHz | 35 @ 252kHz | 39 @ 796kHz | 41 @ 796kHz | 29 @ 796kHz | 50 @ 796kHz |
| Frequency - Self Resonant | 7.5MHz | 7MHz | 2.2MHz | 6.5MHz | 4.8MHz | 8MHz | 9MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 100 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.390" Dia (9.90mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Height - Seated (Max) | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.189" (4.80mm) | 0.150" (3.80mm) |
