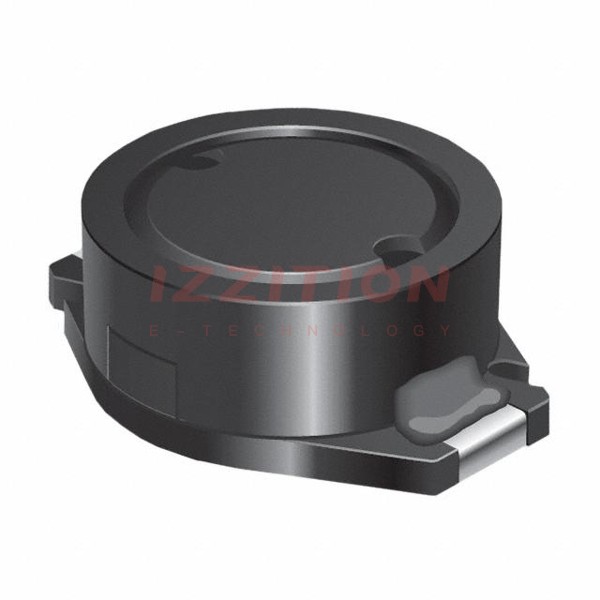

| Part Number | SRR0804-120M | SRR0805-120M | SRR0804-150M | SRR0804-100M |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 12 µH | 15 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.1 A | 1.4 A | 1 A | 1.2 A |
| Current - Saturation (Isat) | 1.9A | 2.1A | 1.6A | 2.2A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 150mOhm Max | 120mOhm Max | 170mOhm Max | 120mOhm Max |
| Q @ Freq | 38 @ 2.52MHz | 40 @ 2.52MHz | 38 @ 2.52MHz | 38 @ 2.52MHz |
| Frequency - Self Resonant | 28MHz | 24MHz | 25MHz | 32MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Height - Seated (Max) | 0.150" (3.80mm) | 0.185" (4.70mm) | 0.150" (3.80mm) | 0.150" (3.80mm) |
