SRR0618-470ML
  • Share:

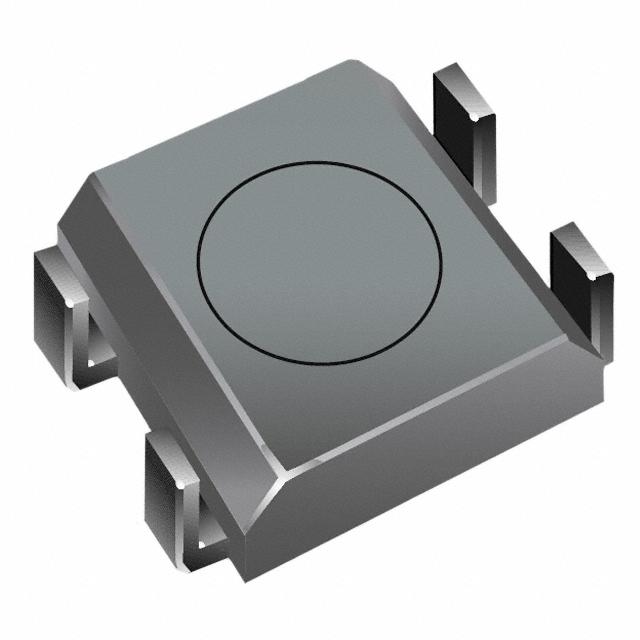

Bourns Inc. SRR0618-470ML

Manufacturer No:
SRR0618-470ML
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SRR0618-470ML Datasheet
ECAD Model:
-
Description:
FIXED IND 47UH 360MA 1.1 OHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:47 µH
Tolerance:±20%
Current Rating (Amps):360 mA
Current - Saturation (Isat):440mA
Shielding:Shielded
DC Resistance (DCR):1.1Ohm Max
Q @ Freq:30 @ 100kHz
Frequency - Self Resonant:20MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max):0.063" (1.60mm)
0 Remaining View Similar

In Stock

-
160

Please send RFQ , we will respond immediately.
