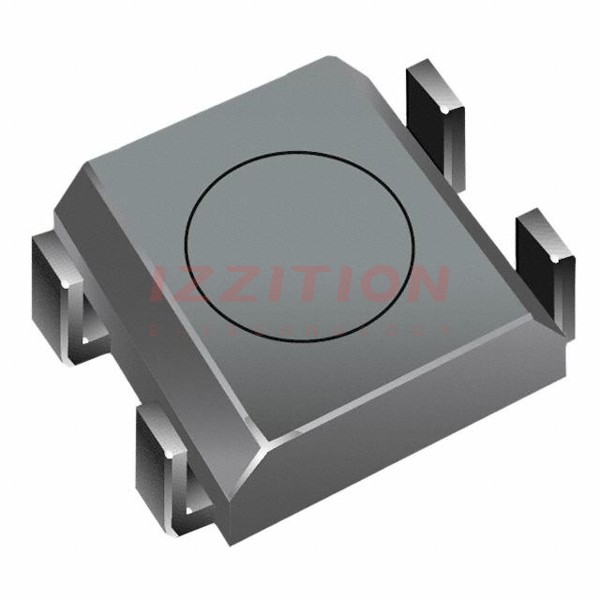

| Part Number | SRR0618-150ML | SRR0618-100ML |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 15 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 600 mA | 820 mA |
| Current - Saturation (Isat) | 760mA | 980mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 310mOhm Max | 220mOhm Max |
| Q @ Freq | 30 @ 100kHz | 30 @ 100kHz |
| Frequency - Self Resonant | 35MHz | 45MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) |
