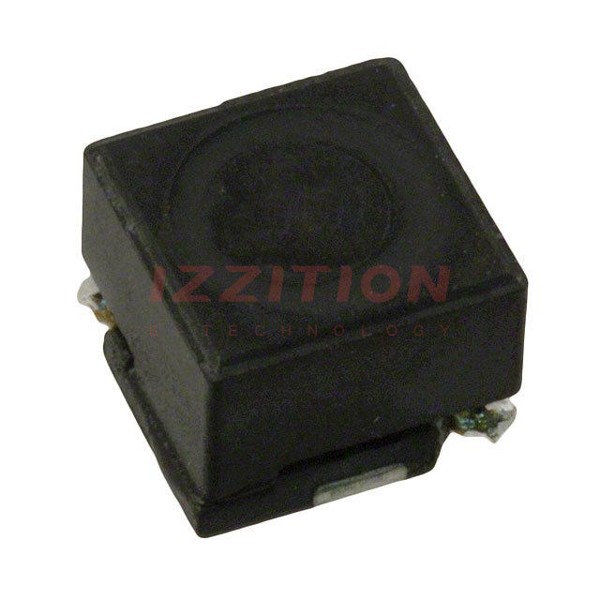

| Part Number | SRR0604-3R3ML | SRR0603-3R3ML |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.3 A | 1.8 A |
| Current - Saturation (Isat) | 2.9A | 2.6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 50mOhm Max | 55mOhm Max |
| Q @ Freq | 21 @ 7.96MHz | 16 @ 7.96MHz |
| Frequency - Self Resonant | 90MHz | 85MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard, Corner Terminals | Nonstandard, Corner Terminals |
| Supplier Device Package | - | - |
| Size / Dimension | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.130" (3.30mm) |
