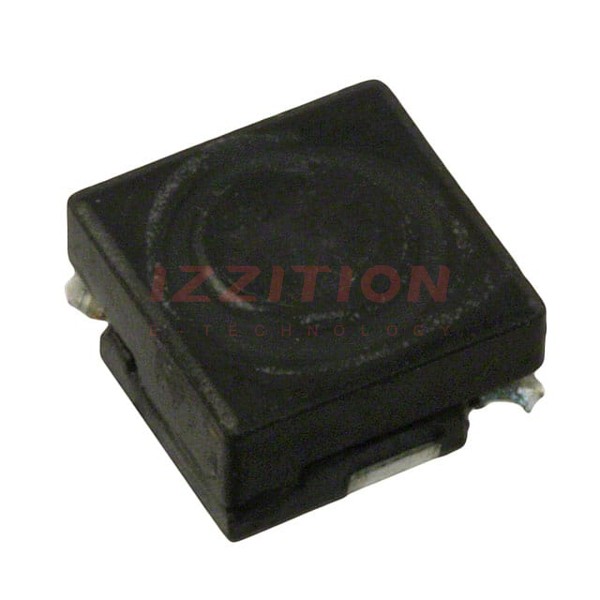

| Part Number | SRR0603-221KL | SRR0604-221KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 220 µH | 220 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 200 mA | 250 mA |
| Current - Saturation (Isat) | 310mA | 320mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 2.7Ohm Max | 1.7Ohm Max |
| Q @ Freq | 20 @ 796kHz | 20 @ 796kHz |
| Frequency - Self Resonant | 5MHz | 10MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard, Corner Terminals | Nonstandard, Corner Terminals |
| Supplier Device Package | - | - |
| Size / Dimension | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Height - Seated (Max) | 0.130" (3.30mm) | 0.189" (4.80mm) |
