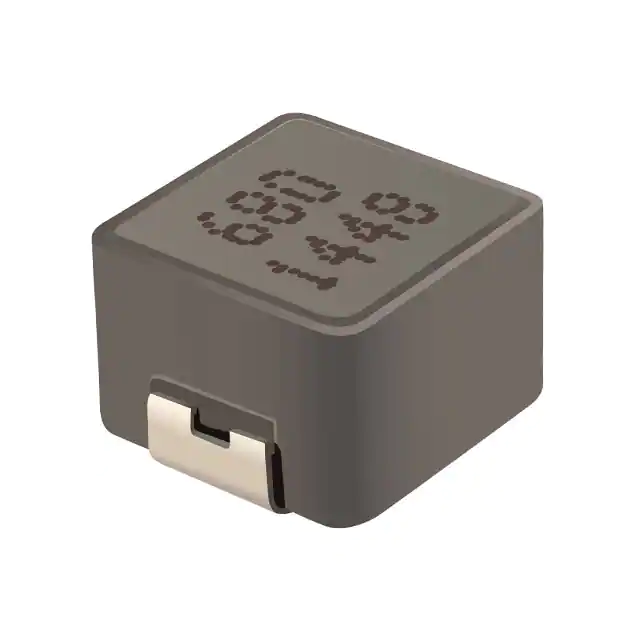

| Part Number | SRP7050TA-6R8M | SRP7050AA-6R8M | SRP7050TA-1R8M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | - | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Metal | Carbonyl Powder |
| Inductance | 6.8 µH | 6.8 µH | 1.8 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 5.5 A | 9 A | 12 A |
| Current - Saturation (Isat) | 8.5A | 7.6A | 15A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 51.5mOhm Max | 36mOhm Max | 11mOhm Max |
| Q @ Freq | 15 @ 100kHz | 10 @ 100kHz | 15 @ 100kHz |
| Frequency - Self Resonant | 18MHz | 14MHz | 38MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -55°C ~ 155°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
