Please send RFQ , we will respond immediately.

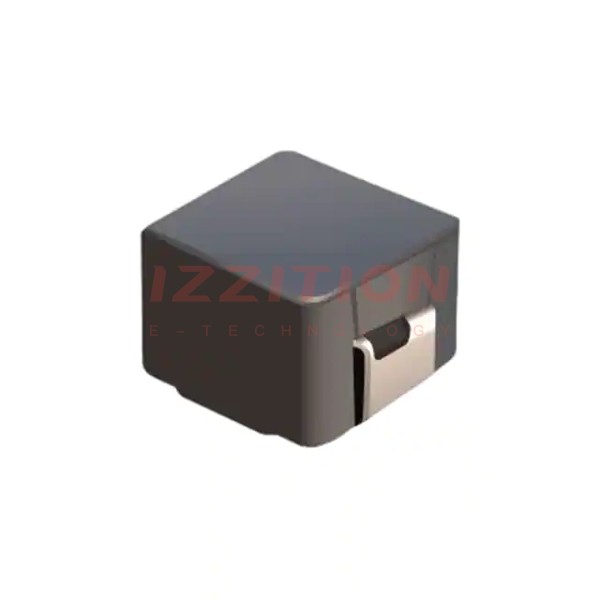

| Part Number | SRP7050AA-1R5M | SRP7050TA-1R5M | SRP7050AA-1R0M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | - | Drum Core, Wirewound | - |
| Material - Core | Metal | Carbonyl Powder | Metal |
| Inductance | 1.5 µH | 1.5 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 15 A | 12 A | 17 A |
| Current - Saturation (Isat) | 13A | 16.5A | 16A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 7.3mOhm Max | 9mOhm Max | 6.2mOhm Max |
| Q @ Freq | 10 @ 100kHz | 15 @ 100kHz | 10 @ 100kHz |
| Frequency - Self Resonant | 32MHz | 43MHz | 47MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -40°C ~ 150°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
