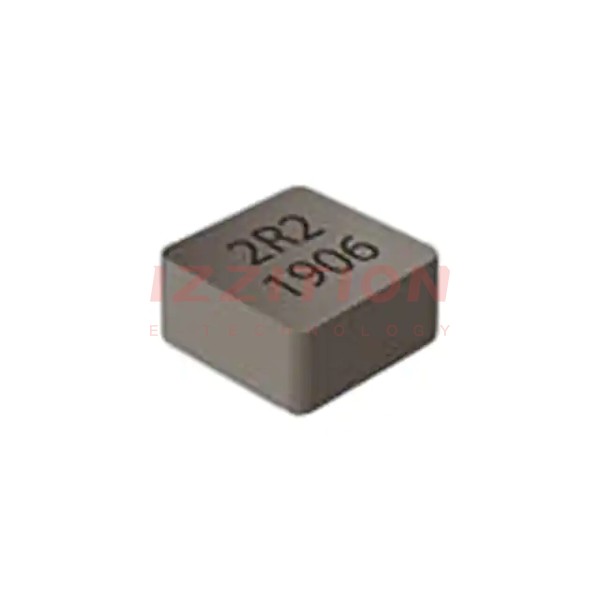

| Part Number | SRP7030CA-2R2M | SRP7030CA-8R2M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal | Metal |
| Inductance | 2.2 µH | 8.2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 13 A | 5.9 A |
| Current - Saturation (Isat) | 19A | 10.2A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 13.7mOhm Max | 48.73mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 38MHz | 12MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.307" L x 0.299" W (7.80mm x 7.60mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.122" (3.10mm) |
