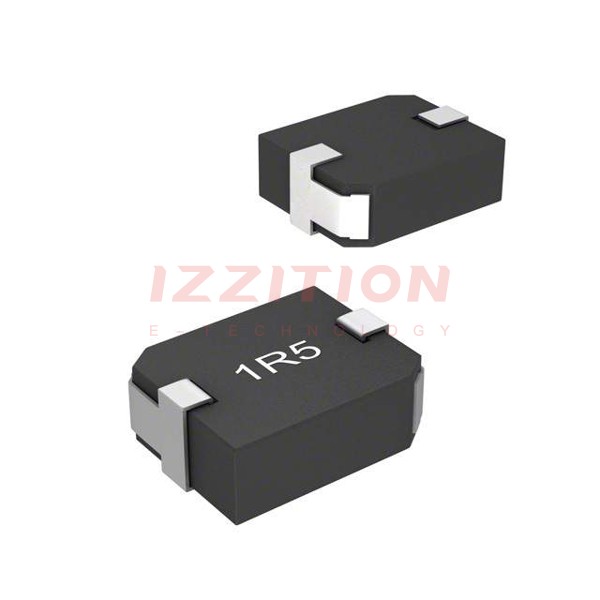

| Part Number | SRP7030-R68M | SRP7030-R68FM |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete |
| Type | Drum Core, Wirewound | Molded |
| Material - Core | Iron | Iron |
| Inductance | 680 nH | 680 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 15.5 A | 15 A |
| Current - Saturation (Isat) | 23A | 17A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 5.5mOhm Max | 5mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.299" L x 0.256" W (7.60mm x 6.50mm) |
| Height - Seated (Max) | 0.126" (3.20mm) | 0.118" (3.00mm) |
