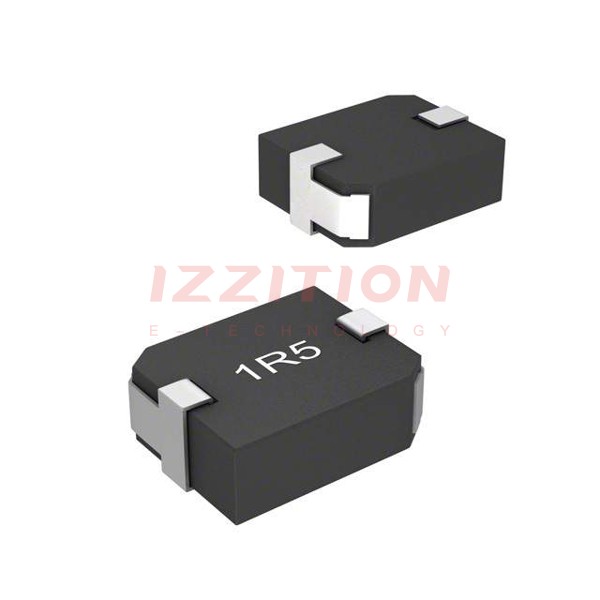

| Part Number | SRP7030-R10M | SRP7030-R15M | SRP7030-R20M | SRP7030-R10FM |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Molded |
| Material - Core | Iron | Iron | Iron | Iron |
| Inductance | 100 nH | 150 nH | 200 nH | 100 nH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 32.5 A | 26 A | 24 A | 32 A |
| Current - Saturation (Isat) | 42A | 38A | 36A | 60A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.7mOhm Max | 2.5mOhm Max | 3mOhm Max | 1.7mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.299" L x 0.256" W (7.60mm x 6.50mm) |
| Height - Seated (Max) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.118" (3.00mm) |
