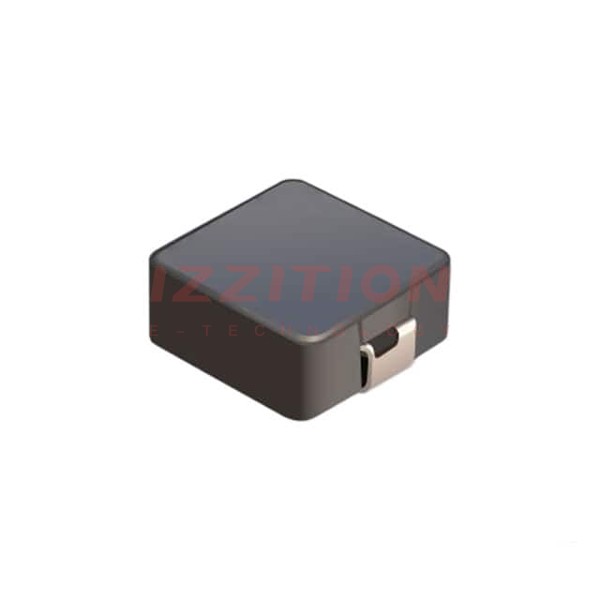

| Part Number | SRP7028AA-R15Y | SRP7028A-R15Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal | Carbonyl Powder |
| Inductance | 150 nH | 150 nH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 30 A | 27 A |
| Current - Saturation (Isat) | 40A | 45A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 2.1mOhm Max | 1.9mOhm Max |
| Q @ Freq | 8 @ 100kHz | 5 @ 100kHz |
| Frequency - Self Resonant | 160MHz | 220MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
