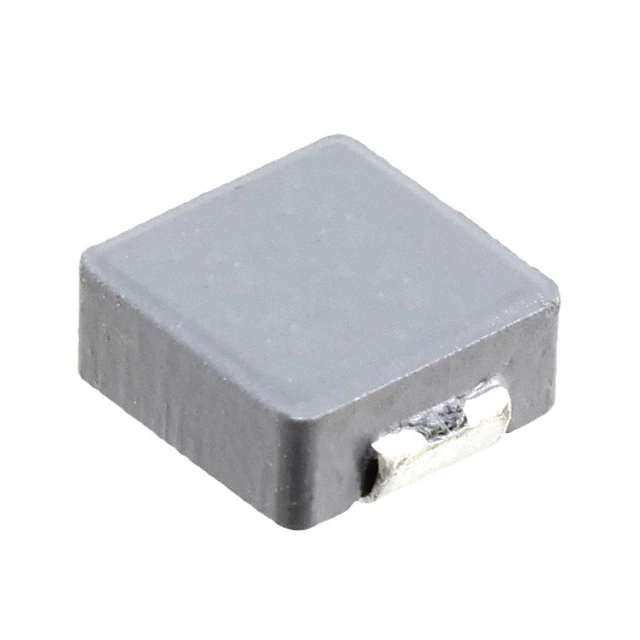

| Part Number | SRP7028A-8R2M | SRP7028AA-8R2M | SRP7028C-8R2M | SRP7028A-2R2M |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Metal | Metal | Carbonyl Powder |
| Inductance | 8.2 µH | 8.2 µH | 8.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 4 A | 4.5 A | 4.1 A | 8 A |
| Current - Saturation (Isat) | 7.5A | 6A | 6.8A | 14A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 68mOhm Max | 60mOhm Max | 66mOhm Max | 20mOhm Max |
| Q @ Freq | 20 @ 100kHz | 10 @ 100kHz | 15 @ 100kHz | 20 @ 100kHz |
| Frequency - Self Resonant | 17MHz | 15MHz | 15MHz | 32MHz |
| Ratings | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -55°C ~ 155°C | -40°C ~ 125°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
