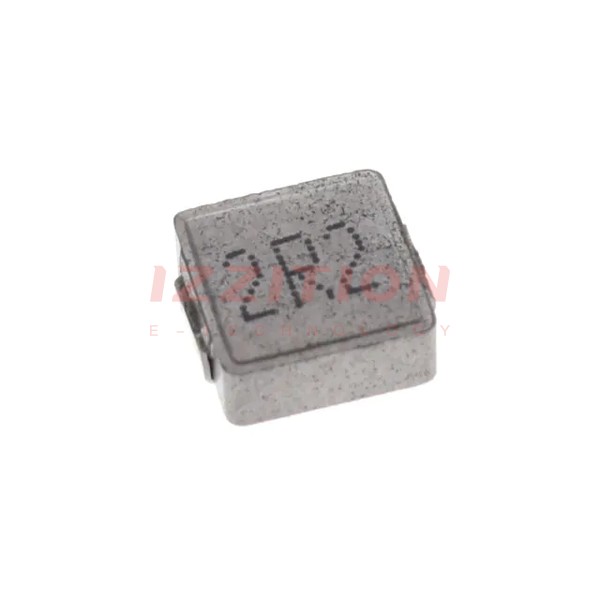

| Part Number | SRP6530A-2R2M | SRP6530A-8R2M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 2.2 µH | 8.2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 10 A | 5 A |
| Current - Saturation (Isat) | 14A | 7.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 20mOhm Max | 68mOhm Max |
| Q @ Freq | 30 @ 7.96MHz | 26 @ 2.52MHz |
| Frequency - Self Resonant | 30MHz | 12MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 500 kHz | 500 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.280" L x 0.260" W (7.10mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
