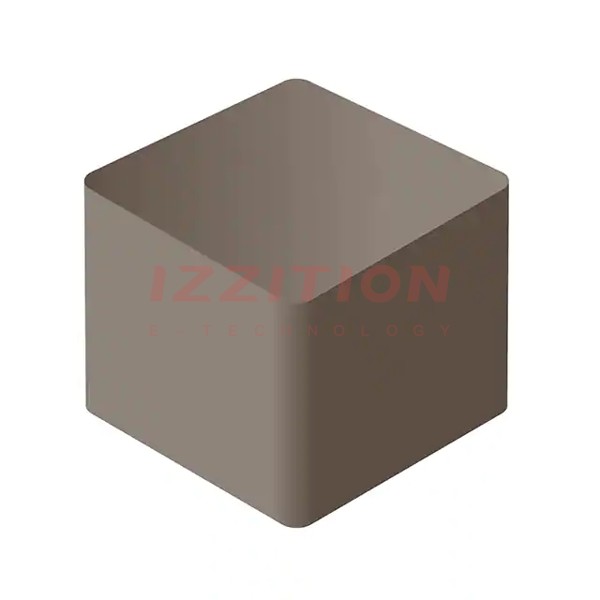

| Part Number | SRP6060FA-150M | SRP6060FA-100M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 15 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 6 A | 7 A |
| Current - Saturation (Isat) | 5.8A | 7.6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 43mOhm Max | 29.3mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 11MHz | 12MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.260" L x 0.252" W (6.60mm x 6.40mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) |
