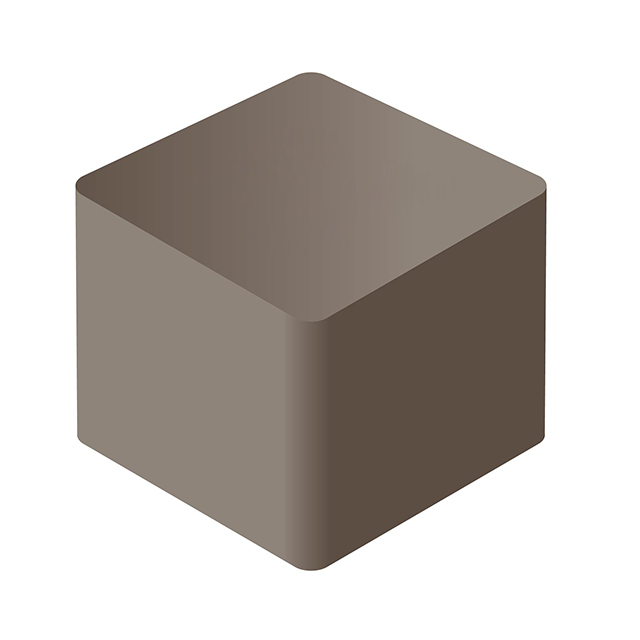

| Part Number | SRP6050CA-4R7M | SRP6050CA-4R3M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 4.7 µH | 4.3 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 8.5 A | 9 A |
| Current - Saturation (Isat) | 10.5A | 11A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 18.4mOhm Max | 16.2mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 22MHz | 23MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.260" L x 0.252" W (6.60mm x 6.40mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) |
