SRP6030VA-R47M
  • Share:

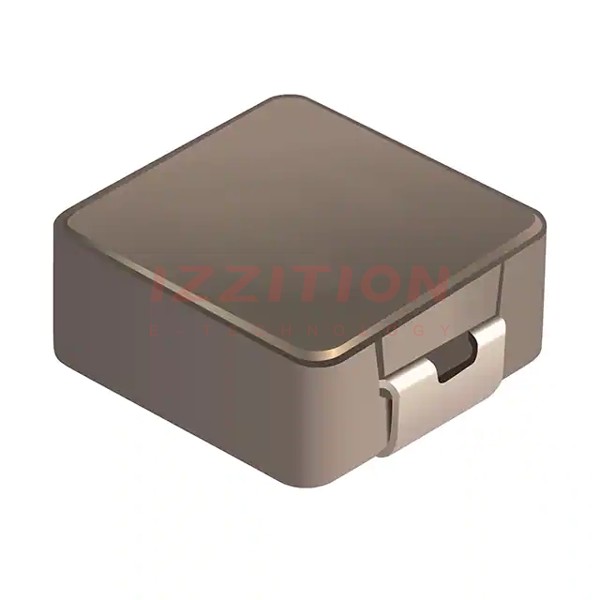

Bourns Inc. SRP6030VA-R47M

Manufacturer No:
SRP6030VA-R47M
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SRP6030VA-R47M Datasheet
ECAD Model:
-
Description:
FIXED IND 470NH 20A 4 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Metal
Inductance:470 nH
Tolerance:±20%
Current Rating (Amps):20 A
Current - Saturation (Isat):21A
Shielding:Shielded
DC Resistance (DCR):4mOhm Max
Q @ Freq:10 @ 100kHz
Frequency - Self Resonant:65MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 180°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.280" L x 0.260" W (7.10mm x 6.60mm)
Height - Seated (Max):0.118" (3.00mm)
0 Remaining View Similar

In Stock

$1.89
184

Please send RFQ , we will respond immediately.
